Parametric External Gear Pump (CATIA V5)
Technical Datasheet
MECH-005Project Overview
A parametric 3D CAD model of an external gear pump, developed in CATIA V5 to practice parametric modeling, design tables, modular CAD structure, assembly constraints, and catalog-style product variant generation.
The model includes realistic pump components such as gears, shafts, bolts, bearings, covers, and the internal cavity. Although visually faithful to real gear pumps, this is a CAD-learning project and not a hydraulically validated design.
The model includes realistic pump components such as gears, shafts, bolts, bearings, covers, and the internal cavity. Although visually faithful to real gear pumps, this is a CAD-learning project and not a hydraulically validated design.
Key Engineering Tasks
- Parametric Modeling: Created parameter-driven CAD model with design tables for variant generation.
- Gear Train Design: Modeled external gear meshing with involute-style teeth and correct offset.
- Housing Assembly: Designed two-piece casing with bolt-through assembly and bearing pockets.
- Shaft System: Modeled splined drive shaft and driven shaft with bearing supports.
- Assembly Constraints: Established proper gear mesh, bearing fixes, and bolt alignments.
- Exploded Views: Created assembly exploded views and technical drawings.
Tools & Technologies
CATIA V5
Design Tables (Excel)
Part Design
Assembly Design

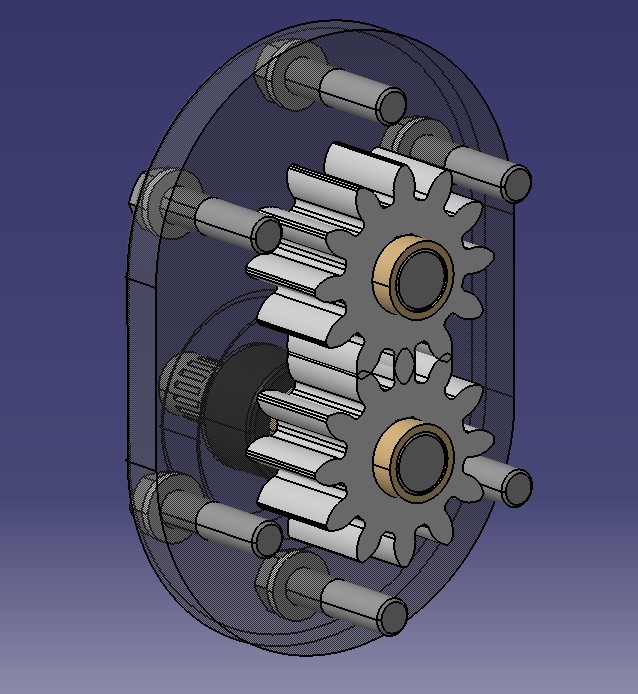

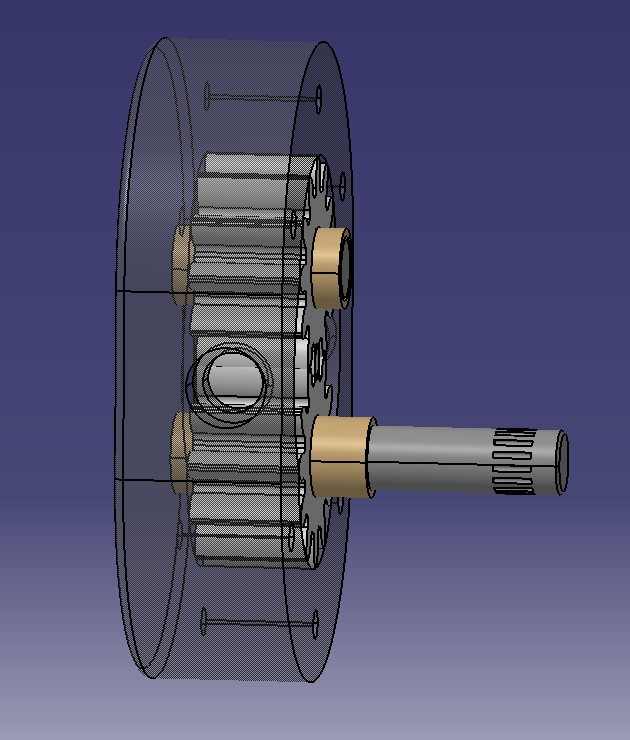

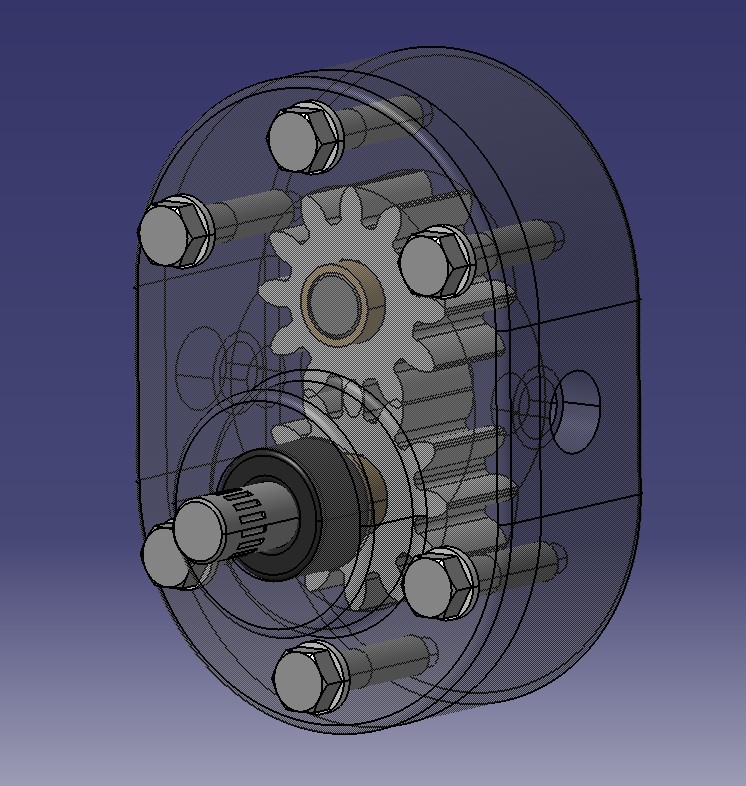

3D Assembly Model
